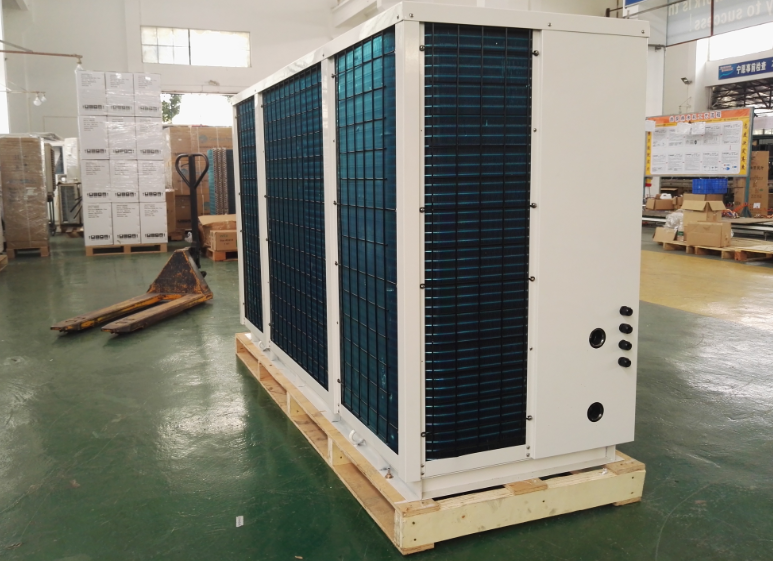

- 42kw 70degree High temperature Air source heat pump Air to water heat pump ((heating+hot water)
- 【Brief】：
- 【Series】：70degree high temp heat pump
- Description
-
High temperature heat pump (70℃ hot water) Model unit FAT-15 Performance Heating capacity kw 42 Btu/h 143345 Hot water supply T/h 0.91 Rated power kw 12.3 Rated current A 18.7 COP kw/kw 3.6 Max rating current A 36 Power supply V/Ph/Hz 380V/3N/50Hz Noise dB(A) 65 Dimension Width mm 2100 Depth mm 900 Height mm 1220 Unit weight kg 420 Operating control Precision of temp contrl ℃ ±1℃ Operating range ℃ –15–43℃ Structure Throtting type Electronic expansion valves Refrigerant Type R417A Discharge kg 2.3*3 Compressor Type Copeland /panasonic scroll Quantity piece 3 Air side heat exchanger Type Finned heat exchange Powder kw 0.9 Hot water side heat exchange Type Efficient tube in shell heat exchanger Water flow m3/h 7.2 Water drop kpa 42 Connecting dimension Inch 1–1/4 Water side max rating pressure kpa 1000 Rated hot water working conditon:air source air inlet dry bulb temp is 20℃,wet buld temp is 15℃,inital temp of hot water is 20℃, termination temp of hot water is 70℃.
