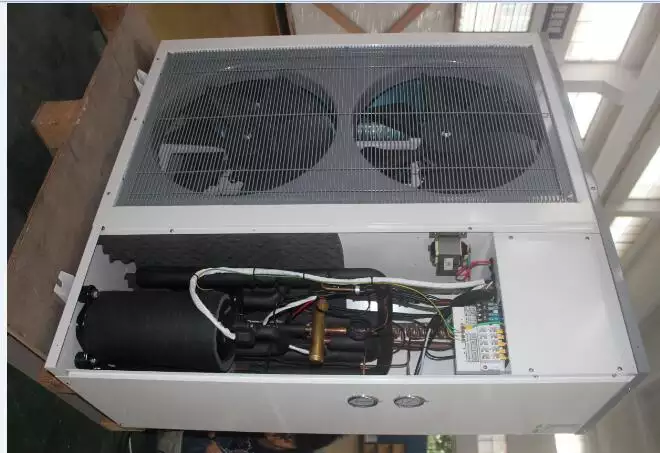

DC inverter heat pumpCurrent Location ：Home > PRODUCTS> DC inverter heat pump
- Description
-
1,Working temp.:-25℃~43℃
2,Test condition:heating mode Ambient temp.:7℃/6℃,inlet/ outlet water temp.:30℃/35℃;
cooling mode Ambient temp.:35℃/24℃,inlet/ outlet water temp.:12℃/7℃DC Inverter Air to Water heat pump( wifi controller) Model FAD-10 Technical Parameters Max. heating capacity kW 23 Min. heating capacity kW 8.1 Rated heating capacity kW 20 Rated heating power input kW 4.26 COP 4.69 Rated cooling capacity kW 18 Rated cooling power input kW 4.81 EER 3.74 Max. water temp. ℃ 60 Rated water temp. ℃ 50 water flow m3/h 3.10 pressure drop Kpa 30 Net weight kg 168 Gross weight kg 186 Noise dB(A) 58 Pipe connection mm 1.2" Power supply 380V/3PH/50Hz,60hz Net size mm 1110*450*1250 Package size mm 1200*520*1390 Standard Features Compressor brand Mitsubishi quantity 1 Condenser plate heat exchanger Evaporator Louverd&hydrophilic fin-tubes Flow switch Yes Circulation pump Built-in energy clasee A water pump Expansion valve Electionic expansion valve DC Fan motor 80W*2 High pressure switch 4.2/3.6MPa Low pressure switch 0.02/0.15MPa Working mode cooling, heating, hot water, cooling+hot water, heating+hot water Refrigerant R410A Energy label Hot water 55dgree A++ Heating 35degree A++
